082-6034
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN N PLUG STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $10.48
Unit Price: USD $10.481268
≥1 USD $10.481268
≥10 USD $9.887987
≥100 USD $9.328285
≥500 USD $8.800272
≥1000 USD $8.302149
Inventory: 1184
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Tetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Crimp or Solder

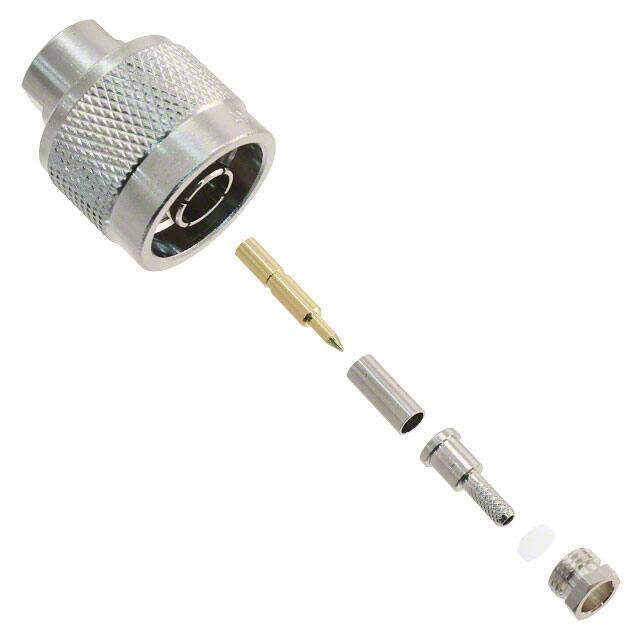

Includes 6 pcs - 1 Connector, 1 Barrel, 1 Contact, 1 Ferrule, 1 Insulator, 1 Nut
Insertion Loss 0.15dB
Body Finish Nickel
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp
Dimensions
Length 35.8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
