082-5378
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN N JACK STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $37.78
Unit Price: USD $37.7784
≥1 USD $37.7784
≥10 USD $33.0792
≥100 USD $31.649376
≥500 USD $30.628576
≥1000 USD $29.607512
≥3000 USD $27.97403
Inventory: 163
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 44.196mm
Technical
Shield Termination Crimp
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Body Finish Nickel
Insertion Loss 0.15dB

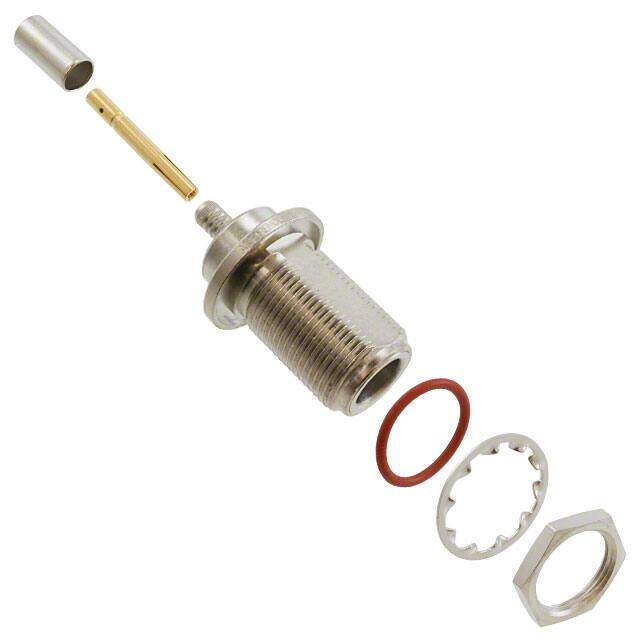

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Contact Termination Crimp or Solder
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Nickel
Number of Ports 1
Connector Style N Type
Impedance 50Ohm
Housing Color Silver
Frequency 11GHz
Ingress Protection Weatherproof
Orientation Straight
Fastening Type Threaded
Voltage - Rated 1500V
Gender Female
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Cable, Front Side Nut, Panel
Contact Plating Gold
Contact Material Brass, Bronze
Supply Chain
Factory Lead Time 9 Weeks
