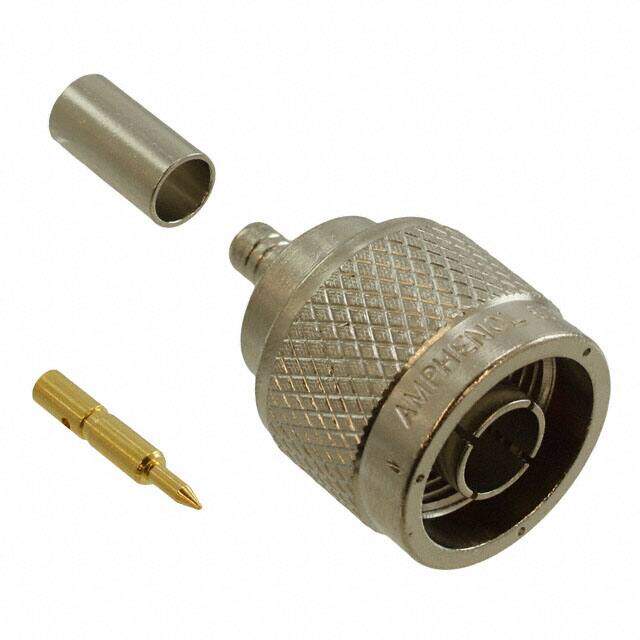

082-5375

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN N PLUG STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $16.98
Unit Price: USD $16.984
≥1 USD $16.984
≥10 USD $14.71888
≥100 USD $13.950816
≥500 USD $13.748592
≥1000 USD $12.131064
≥3000 USD $11.322318
Inventory: 46
Minimum: 1
-
+

Technical Details

Technical

Gender Male
Voltage - Rated 1500V
Fastening Type Threaded
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Straight
Frequency 11GHz
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Silver
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Crimp or Solder
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.15dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
VSWR 1.3
Shield Termination Crimp
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C

Dimensions

Length 37.7mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant

Physical

Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Tetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 9 Weeks
