082-5372
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

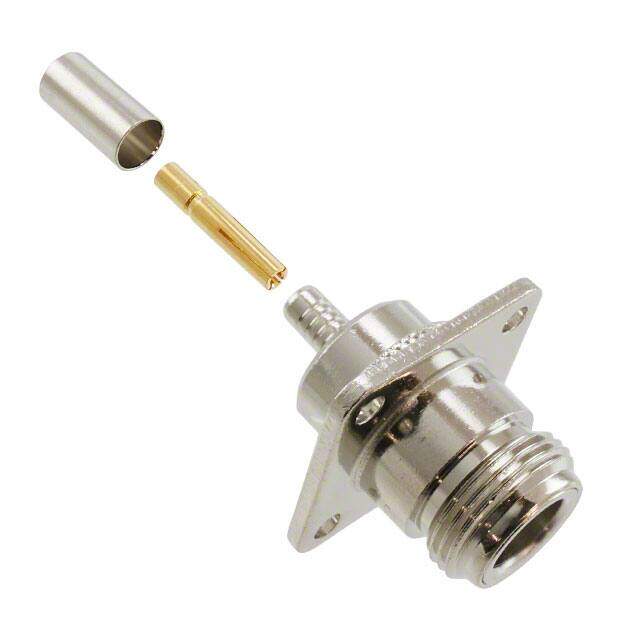

connector, rf coaxial, n panel jack, crimp-crimp, 4-holes, for rg55, 141, 142, 50 ohm
PDF
/
Buying Options
Total Price: USD $18.95
Unit Price: USD $18.9464
≥1 USD $18.9464
≥10 USD $16.59416
≥100 USD $15.87696
≥500 USD $15.3648
≥1000 USD $14.852552
≥3000 USD $14.033114
Inventory: 240
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Female
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Crimp or Solder
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.15dB
Body Finish Nickel
Cable Group RG-55, 142, 223, 400
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
