082-209-1006

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN N JACK STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $22.23
Unit Price: USD $22.2288
≥1 USD $22.2288
≥10 USD $19.46384
≥100 USD $18.62256
≥500 USD $18.021696
≥1000 USD $17.421008
≥3000 USD $16.45981
Inventory: 111
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Length 39.6mm

Technical

Shield Termination Clamp
VSWR 1.3
Cable Group Belden 9913, 9914, LMR-400
Body Finish Nickel
Insertion Loss 0.15dB

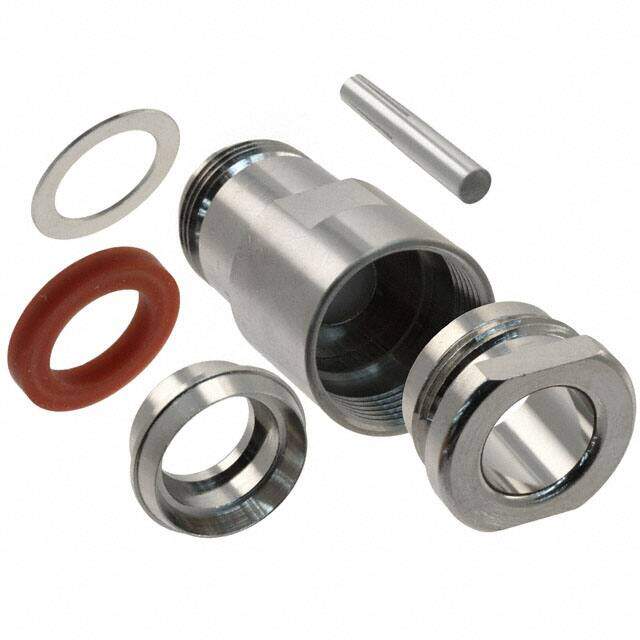

Includes 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style N Type
Impedance 50Ohm
Housing Color Silver
Mating Information MULTIPLE MATING PARTS AVAILABLE
Frequency 11GHz
Ingress Protection Weatherproof
Orientation Straight
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Threaded
Voltage - Rated 1500V
Connector Type Jack, Female Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2003
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Tetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold, Silver
Contact Material Bronze, Copper

Supply Chain

Factory Lead Time 9 Weeks
