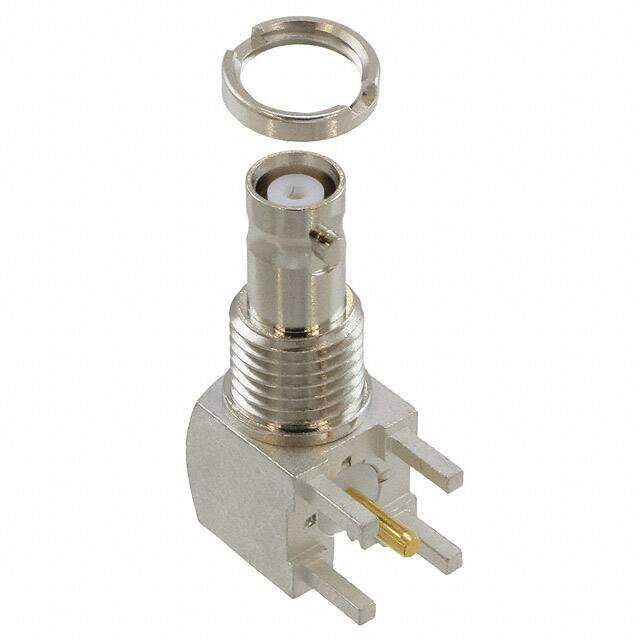

034-5024
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN HDBNC JACK R/A 50 OHM PCB
PDF
/
Buying Options
Total Price: USD $10.92
Unit Price: USD $10.9208
≥1 USD $10.9208
≥10 USD $9.67648
≥100 USD $9.304768
≥500 USD $8.932528
≥1000 USD $8.436208
≥3000 USD $7.691878
Inventory: 237
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount PCB, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Number of Pins 4
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2013
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Gender Male
Fastening Type Bayonet Lock
Orientation Right Angle
Depth 7.5mm
Frequency 6GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC, HD
Number of Ports 1
Body Plating Nickel
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Includes 2 pcs - 1 Connector, 1 Nut
Body Finish Nickel
Shield Termination Solder
Dimensions
Length 20.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
