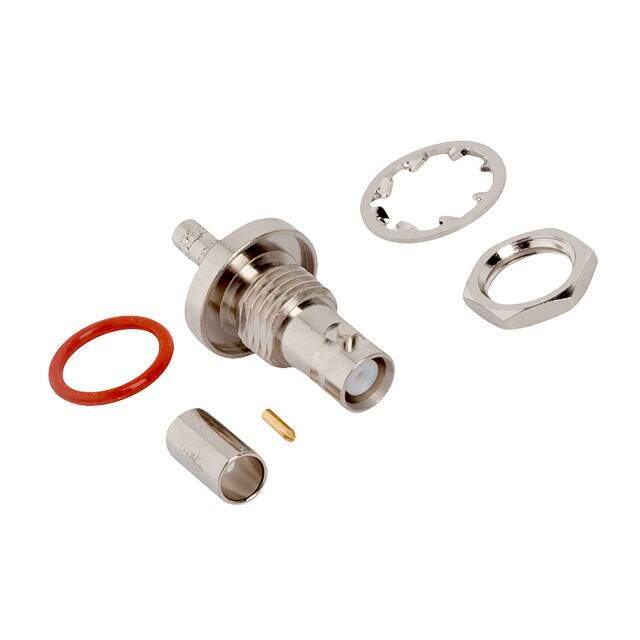

034-5019
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Conn;RF;HD-BNC;STR;Cable Jack;50Ohms;RG-316;IP67
PDF
/
Buying Options
Total Price: USD $10.84
Unit Price: USD $10.8416
≥1 USD $10.8416
≥10 USD $9.61312
≥100 USD $9.24352
≥500 USD $8.87392
≥1000 USD $8.380856
≥3000 USD $7.641392
Inventory: 231
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Crimp
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Finish Nickel
Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style BNC, HD
Impedance 50Ohm
Empty Shell NO
Housing Color Silver
UL Flammability Code 94V-0
Contact Gender FEMALE AND FEMALE
Frequency 6GHz
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Total Number of Contacts 8
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Bayonet Lock
Additional Feature OTHER STACKING CONNECTORS: 8 CONTACTS, 2 PORTS, 4 POSITION EACH
Voltage - Rated 170V
Connector Type Jack, Female Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2012
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Shell Material STAINLESS STEEL
Insulation Material POLYETHYLENE POLYESTER
Mounting Feature Bulkhead - Front Side Nut
Package / Case 316
Mounting Type Panel Mount
Mount Bulkhead, Cable, Front Side Nut, Panel
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
