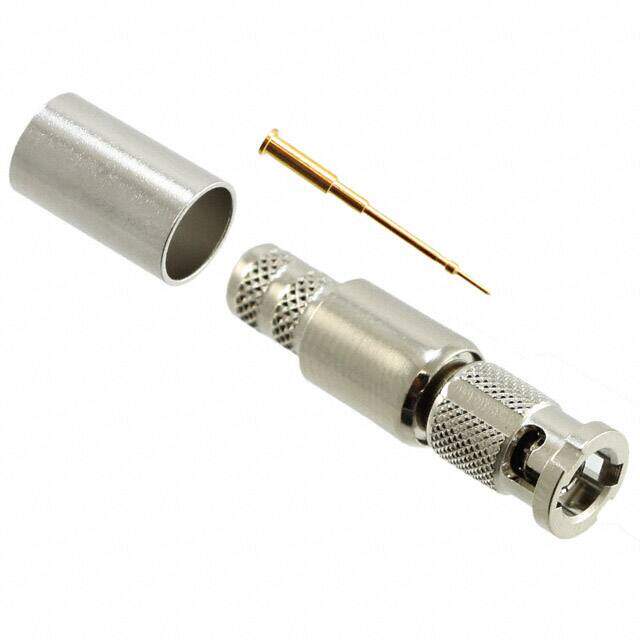

034-1027 image
Favorite
034-1027 image
Favorite

034-1027

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN HDBNC PLUG STR 75 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $12.36
Unit Price: USD $12.364
≥1 USD $12.364
≥10 USD $10.95864
≥100 USD $10.536768
≥500 USD $10.115424
≥1000 USD $9.553456
≥3000 USD $8.71053
Inventory: 195
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length 33.97mm

Technical

Cable Group Belden 1695A
Body Finish Nickel
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Number of Ports 1
Connector Style BNC, HD
Impedance 75Ohm
Polarity Normal
Housing Color Silver
Mating Information MULTIPLE MATING PARTS AVAILABLE
Frequency 4GHz
Orientation Straight
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Bayonet Lock
Additional Feature VSWR MAX AT 3 GHZ
Gender Male
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2010
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Bronze

Supply Chain

Factory Lead Time 9 Weeks
