034-1024
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

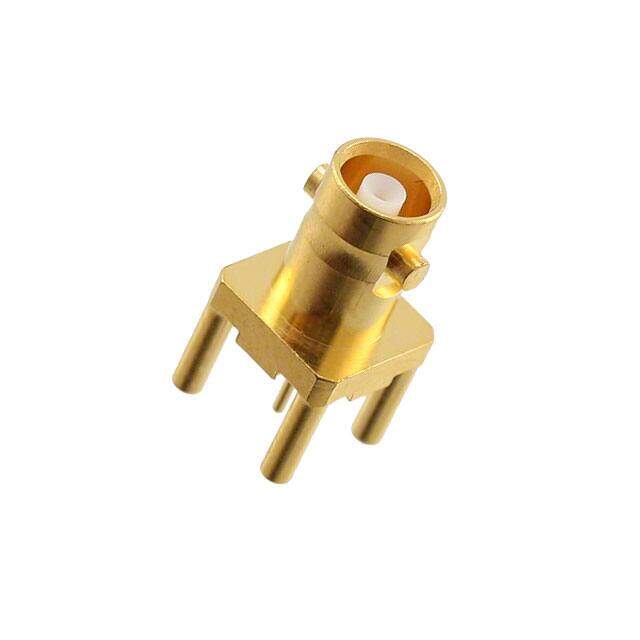

Conn RF HD-BNC STR PCB Jack 4-Pin Thru Hole 75Ohm
PDF
/
Buying Options
Total Price: USD $8.16
Unit Price: USD $8.155735
≥1 USD $8.155735
≥200 USD $3.254679
≥500 USD $3.145708
≥1000 USD $3.09188
Inventory: 6588
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 6mm
Technical
Shield Termination Solder
Body Finish Gold
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4.5GHz
Body Plating Gold
Number of Ports 1
Connector Style BNC, HD
Impedance 75Ohm
Polarity Normal
Housing Color Gold
Frequency 4.5GHz
Depth 6mm
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 335V
Connector Type Receptacle, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2010
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Number of Pins 4
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
