031-80901
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

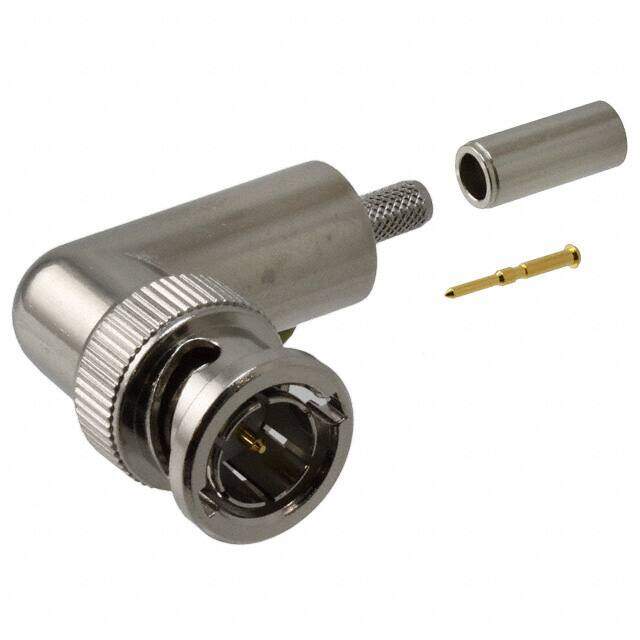

CONN BNC PLUG R/A 75 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $22.75
Unit Price: USD $22.748
≥1 USD $22.748
≥10 USD $19.9232
≥100 USD $19.062208
≥500 USD $18.44744
≥1000 USD $17.832496
≥3000 USD $16.84863
Inventory: 134
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Shield Termination Crimp
Cable Group RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Body Finish Nickel
Insertion Loss 0.2dB
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 3GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 3GHz
Orientation Right Angle
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2006
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Zinc Die Cast
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
