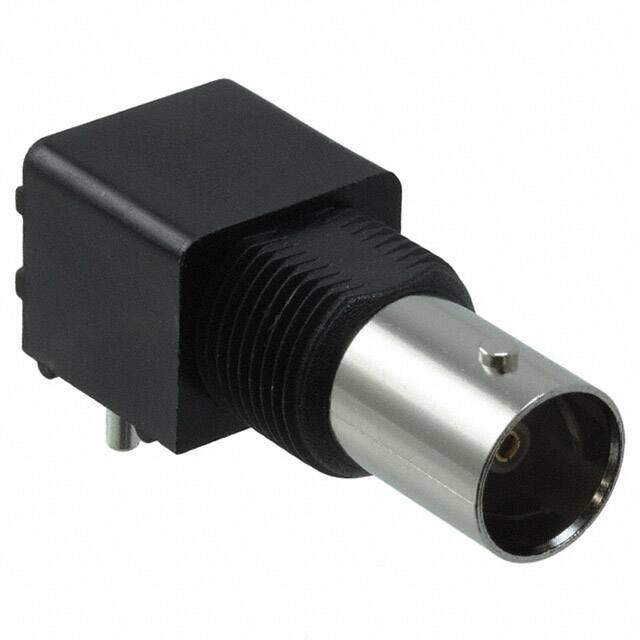

031-71053
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK R/A 75 OHM PCB
PDF
/
Buying Options
Total Price: USD $9.07
Unit Price: USD $9.068985
≥1 USD $9.068985
≥10 USD $8.555642
≥100 USD $8.071358
≥500 USD $7.614499
≥1000 USD $7.183491
Inventory: 1523
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Gold
Mount PCB, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polypropylene (PP)
Body Material Zinc Die Cast
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -55°C~85°C
Packaging Tray
Published 2001
Feature Board Guide, Isolated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Right Angle
Frequency 1GHz
Housing Color Black, Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 1GHz
Mating Cycles 500
Contact Termination Solder
Insertion Loss 0.2dB
Body Finish Nickel
Shield Termination Solder
Dimensions
Length 35.56mm
Compliance
RoHS Status RoHS Compliant
