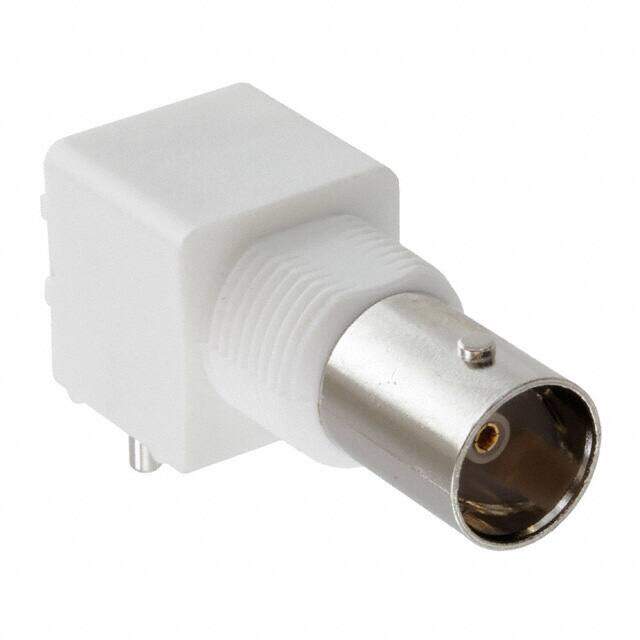

031-71047
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK R/A 75 OHM PCB
PDF
/
Buying Options
Total Price: USD $6.37
Unit Price: USD $6.36893
≥1 USD $6.36893
≥10 USD $6.008429
≥100 USD $5.66833
≥500 USD $5.347478
≥1000 USD $5.044796
Inventory: 1229
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Technical
Shield Termination Solder
Body Finish Nickel
Insertion Loss 0.2dB
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 1GHz
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver, White
Frequency 1GHz
Orientation Right Angle
Fastening Type Bayonet Lock
Voltage - Rated 500V
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Isolated
Published 2012
Packaging Tray
Operating Temperature -55°C~85°C
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Zinc Die Cast
Dielectric Material Polypropylene (PP)
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
