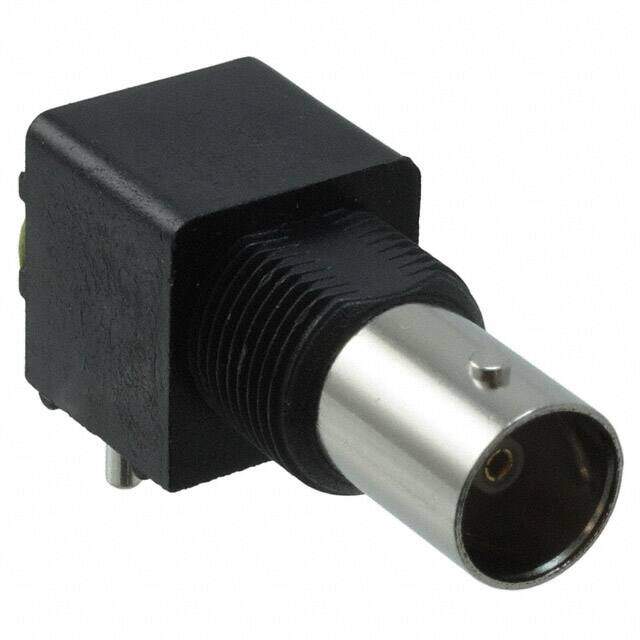

031-71046 image
Favorite
031-71046 image
Favorite

031-71046

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN BNC JACK R/A 75 OHM PCB
PDF
/
Buying Options
Total Price: USD $8.02
Unit Price: USD $8.0168
≥1 USD $8.0168
≥10 USD $7.21248
≥100 USD $6.793952
≥500 USD $6.6198
≥1000 USD $6.44556
≥3000 USD $5.74875
Inventory: 81
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Technical

Shield Termination Solder
Body Finish Nickel
Insertion Loss 0.2dB
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 1GHz
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Black, Silver
Frequency 1GHz
Orientation Right Angle
Fastening Type Bayonet Lock
Voltage - Rated 500V
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Isolated
Published 2012
Packaging Tray
Operating Temperature -55°C~85°C

Physical

Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Zinc Die Cast
Dielectric Material Polypropylene (PP)
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 9 Weeks
