031-71042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

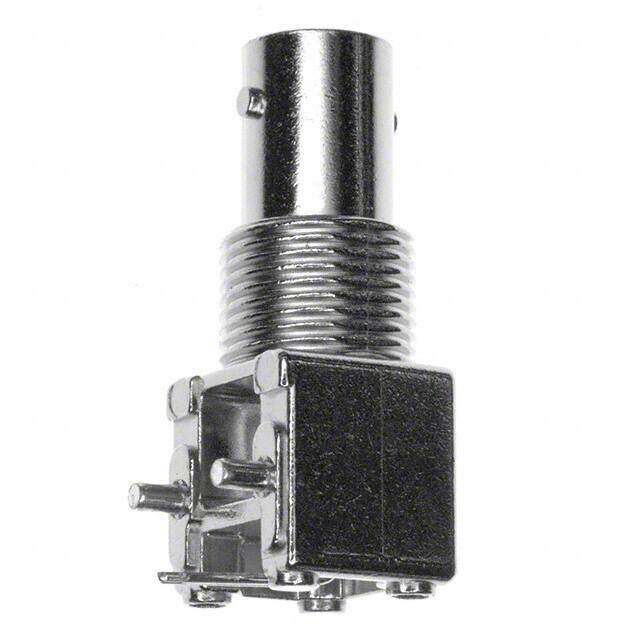

CONN BNC JACK R/A 75 OHM PCB
PDF
/
Buying Options
Total Price: USD $7.37
Unit Price: USD $7.3744
≥1 USD $7.3744
≥10 USD $6.66864
≥100 USD $6.300096
≥500 USD $6.14636
≥1000 USD $5.839064
≥3000 USD $5.224384
Inventory: 285
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Gold
Mount Bulkhead, PCB, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polypropylene (PP)
Body Material Zinc Die Cast
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -55°C~85°C
Packaging Tray
Published 2009
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Right Angle
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 1GHz
Mating Cycles 500
Contact Termination Solder
Insertion Loss 0.2dB
Body Finish Nickel
Shield Termination Solder
Dimensions
Length 35.6mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
