031-71035
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
connector, rf coaxial, bnc str plug, crimp-crimp, for plenum 59(20awg cc), 75 ohm-t2
PDF
/
Buying Options
Total Price: USD $6.02
Unit Price: USD $6.0192
≥1 USD $6.0192
≥10 USD $5.41904
≥100 USD $5.105056
≥500 USD $4.974112
≥1000 USD $4.843168
≥3000 USD $4.609
Inventory: 68
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Crimp
Cable Group RG-59 Plenum, Belden 1506, 82108, 9104
Body Finish Nickel
Insertion Loss 0.2dB

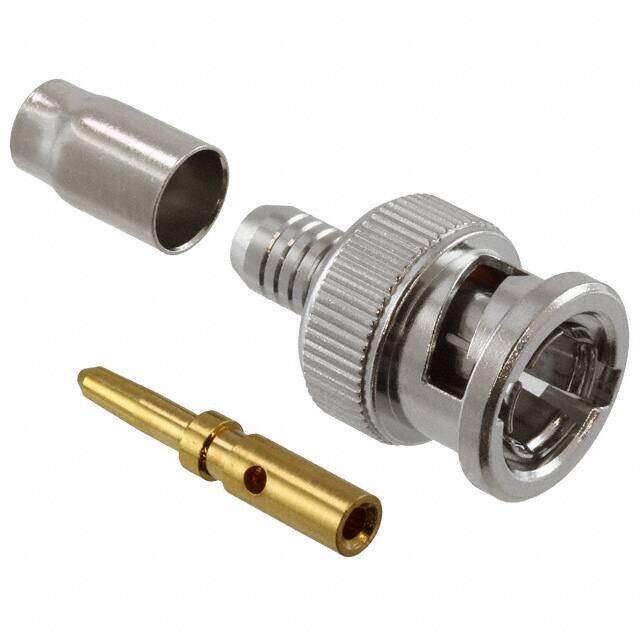

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 4GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Resistance 75Ohm
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
