031-70334
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN MINI BNC PLUG 75 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $12.08
Unit Price: USD $12.0824
≥1 USD $12.0824
≥10 USD $10.71136
≥100 USD $10.298816
≥500 USD $9.886976
≥1000 USD $9.337768
≥3000 USD $8.513824
Inventory: 120
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Technical
VSWR 1.3
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Body Finish Nickel
Insertion Loss 0.1dB

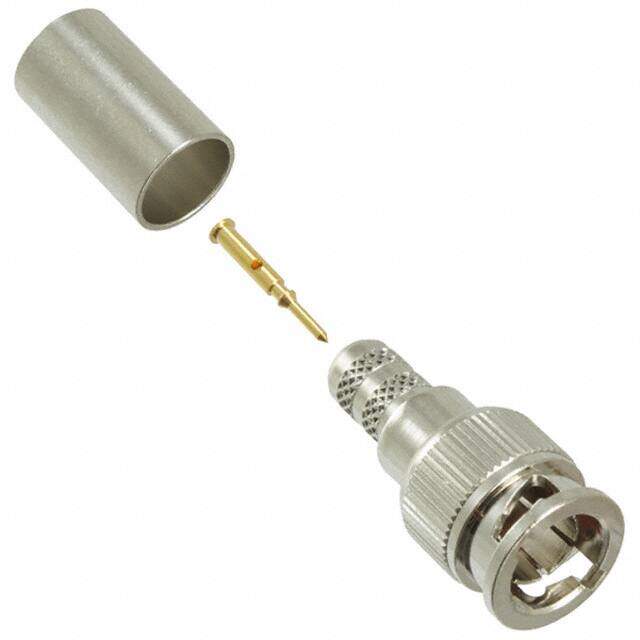

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 1GHz
Number of Ports 1
Connector Style BNC, Mini
Impedance 75Ohm
Body Depth 0.97 inch
Housing Color Silver
Frequency 4GHz
Orientation Straight
Total Number of Contacts 1
Option GENERAL PURPOSE
Filter Feature NO
Fastening Type Bayonet Lock
Voltage - Rated 400V
Connector Type Plug, Male Pin
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2006
Packaging Bulk
Operating Temperature -40°C~155°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Phosphor Bronze
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material POLYTETRAFLUORO ETHYLENE
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 9 Weeks
