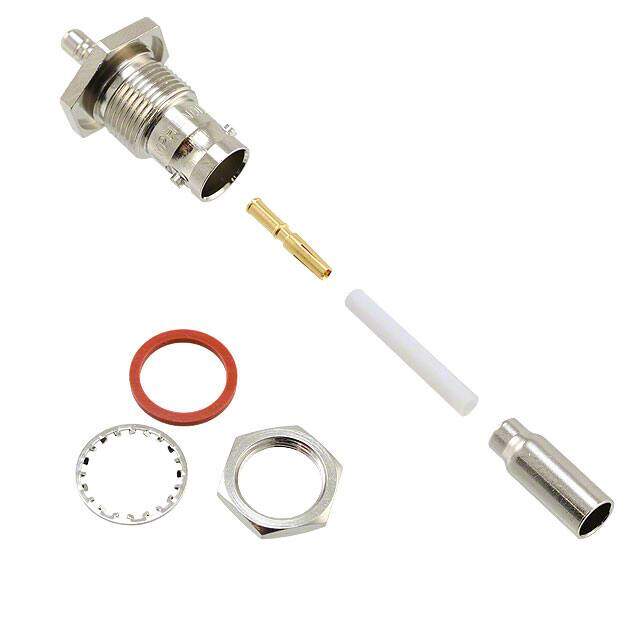

031-70016
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK STR 75 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $18.71
Unit Price: USD $18.7088
≥1 USD $18.7088
≥10 USD $16.38032
≥100 USD $15.6728
≥500 USD $15.167328
≥1000 USD $14.661768
≥3000 USD $13.85281
Inventory: 162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Cable, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Resistance 75Ohm
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 4GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp or Solder
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
