031-6861
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

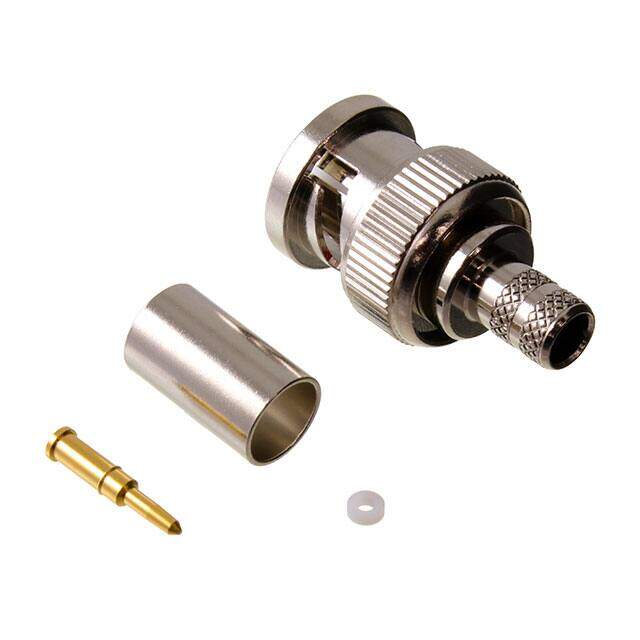

BNC STRAIGHT CRIMP PLUG FOR LMR-
PDF
/
Buying Options
Total Price: USD $7.81
Unit Price: USD $7.8144
≥1 USD $7.8144
≥10 USD $7.06904
≥100 USD $6.677792
≥500 USD $6.514816
≥1000 USD $6.189128
≥3000 USD $5.537664
Inventory: 135
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Phosphor Bronze
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Male Pin
Fastening Type Bayonet Lock
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Frequency (Max) 12.4GHz
Mating Cycles 500
Contact Termination Solder
Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator
Body Finish Nickel
Cable Group LMR-240
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
