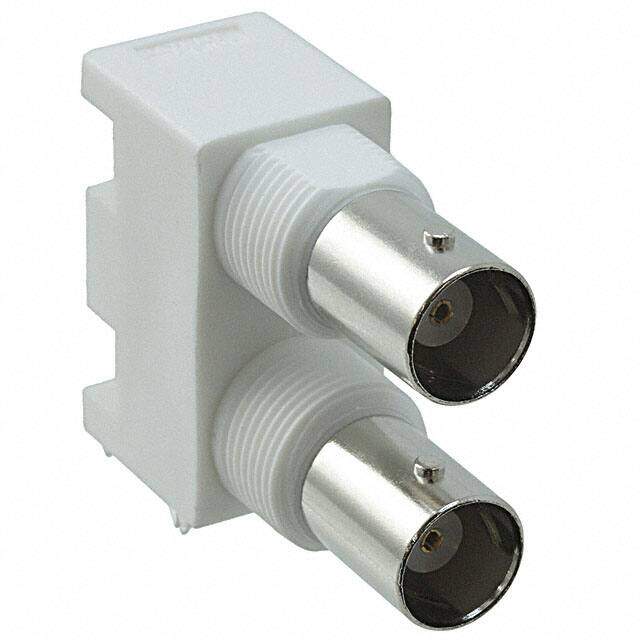

031-6576
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK R/A 50 OHM PCB
PDF
/
Buying Options
Total Price: USD $10.34
Unit Price: USD $10.34
≥1 USD $10.34
≥10 USD $9.1608
≥100 USD $8.8088
≥500 USD $8.45636
≥1000 USD $7.986616
≥3000 USD $7.281912
Inventory: 205
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polypropylene (PP)
Body Material Polybutylene Terephthalate (PBT), Glass Filled
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -55°C~85°C
Packaging Tray
Published 2013
Feature Board Lock, Isolated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Right Angle
Frequency 1GHz
Housing Color Silver, White
Impedance 50Ohm
Connector Style BNC
Number of Ports 2
Frequency (Max) 1GHz
Mating Cycles 500
Contact Termination Solder
Insertion Loss 0.2dB
Shield Termination Solder
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
