031-6508
RoHS
RoHS compliant
RoHS compliantPackage 200
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Conn;RF;TNC;Straight;CableJack;Blkhd;50Ohm;LMR-200;ReversePolarity
PDF
/
Buying Options
Total Price: USD $26.18
Unit Price: USD $26.18
≥1 USD $26.18
≥10 USD $22.924
≥100 USD $21.933472
≥500 USD $21.225952
≥1000 USD $20.518344
≥3000 USD $19.386286
Inventory: 198
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Technical
Shield Termination Crimp
Cable Group Belden 7807A, LMR-200
Body Finish Nickel
Insertion Loss 0.18dB

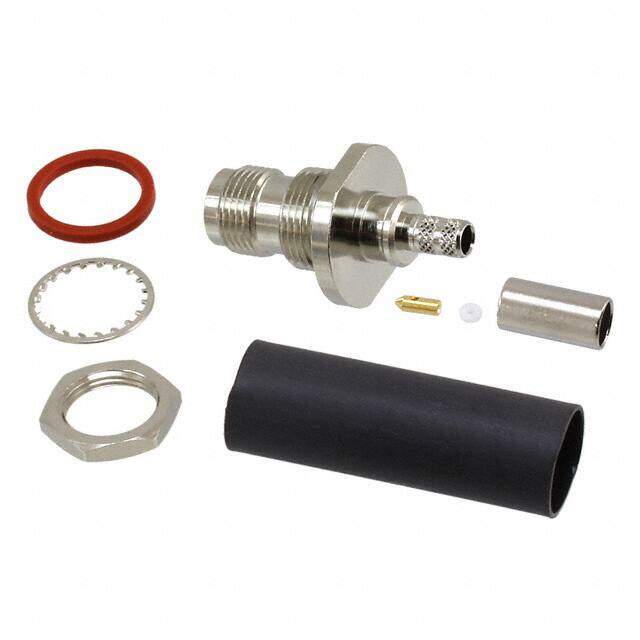

Includes 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Nickel
Number of Ports 1
Connector Style RP-TNC
Impedance 50Ohm
Polarity Reverse
Housing Color Silver
Frequency 6GHz
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Fastening Type Threaded
Voltage - Rated 500V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Connector Type Jack, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ARC
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Front Side Nut
Package / Case 200
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
