031-6505

Amphenol RF
RoHS
RoHS RoHS compliant
Package 200
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN TNC JACK STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $22.99
Unit Price: USD $22.989522
≥1 USD $22.989522
≥10 USD $21.688223
≥100 USD $20.460597
≥500 USD $19.302443
≥1000 USD $18.209855
Inventory: 5342
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case 200
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper, Brass

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series ARC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Frequency 6GHz
Housing Color Silver
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder

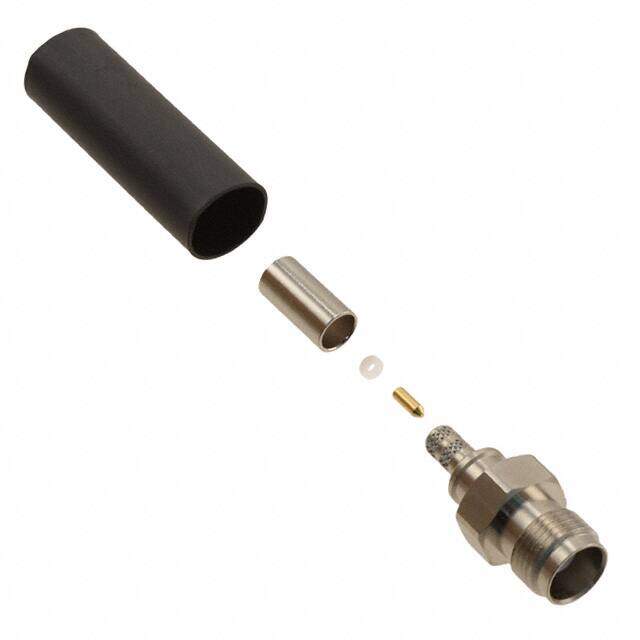

Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group Belden 7807A, LMR-200
Shield Termination Crimp

Compliance

RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
