031-6332
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $17.2
Unit Price: USD $17.1952
≥1 USD $17.1952
≥10 USD $14.90544
≥100 USD $14.127872
≥500 USD $13.923008
≥1000 USD $12.284976
≥3000 USD $11.46596
Inventory: 543
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case 316
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2010
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Ingress Protection IP67 - Dust Tight, Waterproof
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 2GHz
Mating Cycles 500
Contact Termination Crimp or Solder

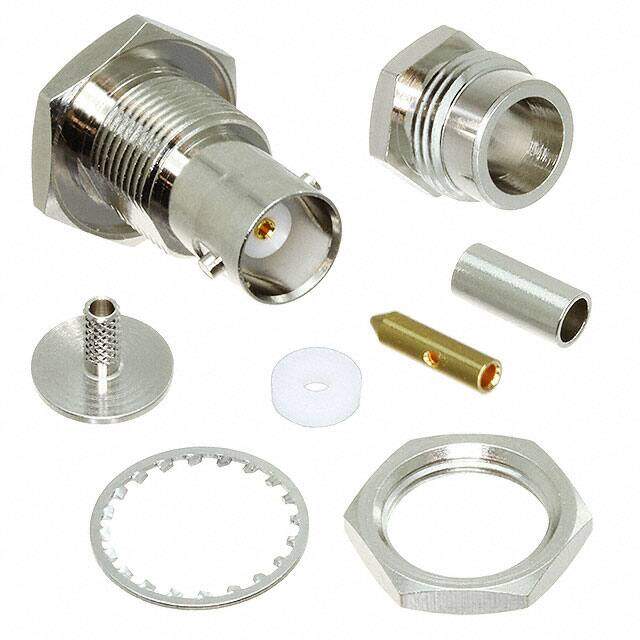

Includes 9 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Rear Body
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-179, 188, 316 Double Braid, M17/152-RD316
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
