031-6233
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK STR 50OHM EDGE MNT
PDF
/
Buying Options
Total Price: USD $7.81
Unit Price: USD $7.8056
≥1 USD $7.8056
≥10 USD $7.02592
≥100 USD $6.618304
≥500 USD $6.44864
≥1000 USD $6.278976
≥3000 USD $5.60017
Inventory: 904
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Edge
Mounting Type Board Edge, End Launch; Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Zinc Die Cast
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2006
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Resistance 50Ohm
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 3GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 3GHz
Mating Cycles 500
Contact Termination Solder

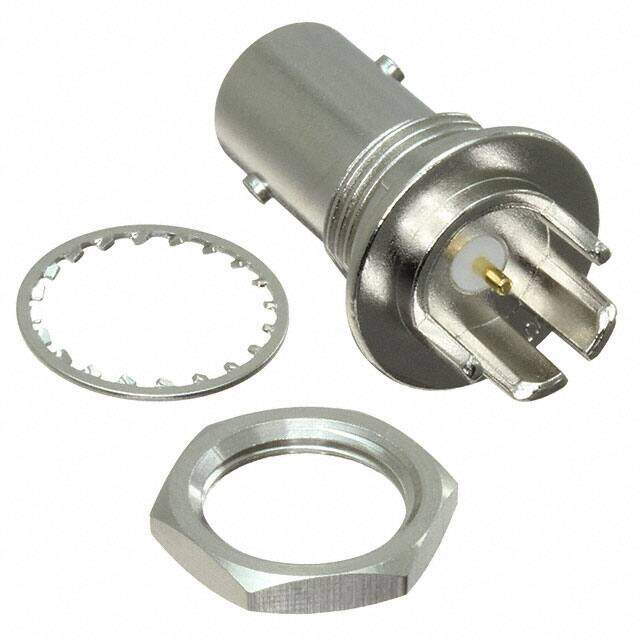

Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Insertion Loss 0.2dB
Body Finish Nickel
Shield Termination Solder
Compliance
RoHS Status RoHS Compliant
