031-5911-RFX
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

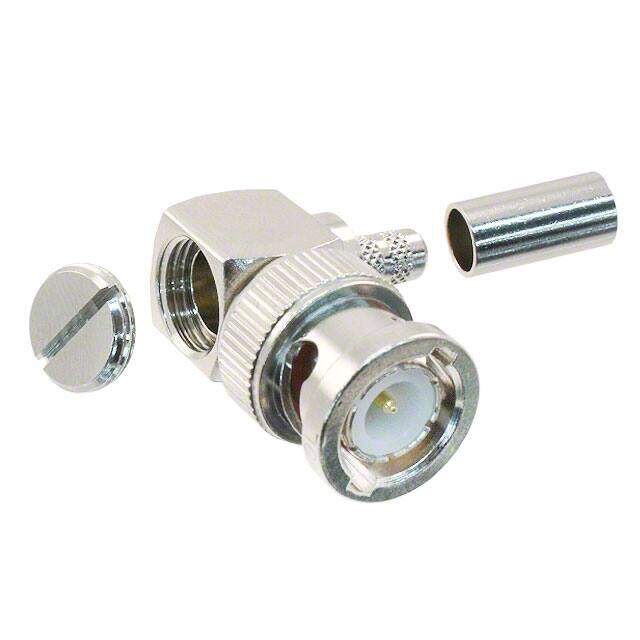

CONN BNC PLUG R/A 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $5.76
Unit Price: USD $5.75653
≥1 USD $5.75653
≥10 USD $5.430681
≥100 USD $5.123296
≥500 USD $4.833295
≥1000 USD $4.559711
Inventory: 1745
Minimum: 1
-
+
Technical Details
Physical
Body Material Brass
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Material Brass, Bronze, Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug, Male Pin
Resistance 50Ohm
Voltage - Rated 500V
Fastening Type Bayonet Lock
Total Number of Contacts 1
Orientation Right Angle
Frequency 4GHz
Reliability COMMERCIAL
Housing Color Silver
Contact Style COAX
Cable Type RG-58/U
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Mating Cycles 500
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
Supply Chain
Factory Lead Time 9 Weeks
