031-5 image
Favorite
031-5 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN BNC JACK STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $8.76
Unit Price: USD $8.756
≥1 USD $8.756
≥10 USD $7.8804
≥100 USD $7.423328
≥500 USD $7.232896
≥1000 USD $7.04264
≥3000 USD $6.281238
Inventory: 178
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 29mm

Technical

Shield Termination Clamp
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Finish Nickel
Insertion Loss 0.2dB

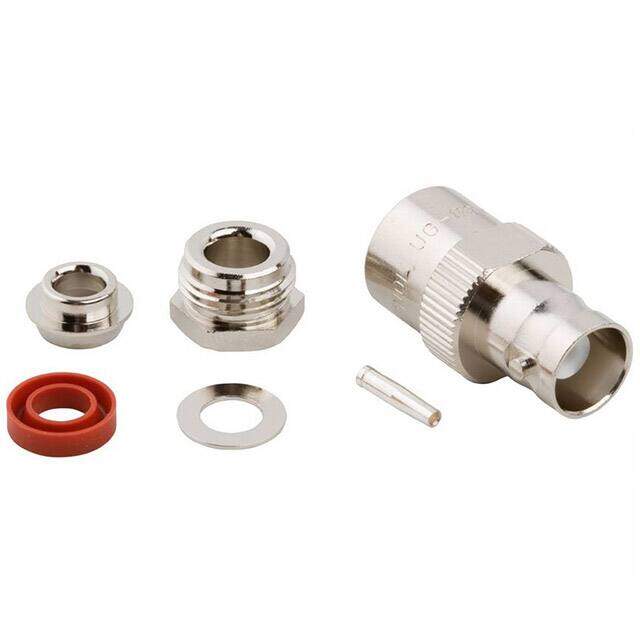

Includes 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
Contact Termination Crimp or Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 50Ohm
Housing Color Silver
Frequency 4GHz
Ingress Protection Weatherproof
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Female
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Resistance 50Ohm
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Silver
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold, Silver
Contact Material Bronze, Copper

Supply Chain

Factory Lead Time 9 Weeks
