031-4237
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC RCPT STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $19.14
Unit Price: USD $19.14
≥1 USD $19.14
≥10 USD $16.75872
≥100 USD $16.034304
≥500 USD $15.517216
≥1000 USD $14.999864
≥3000 USD $14.172312
Inventory: 95
Minimum: 1
-
+
Technical Details
Technical
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Female
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Resistance 50Ohm
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Hermetically Sealed
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Shield Termination Solder
Body Finish Silver
Insertion Loss 0.2dB

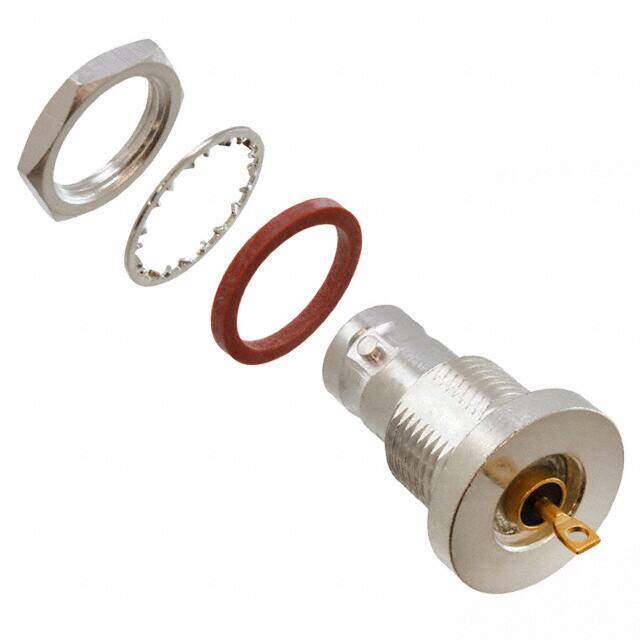

Includes 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Contact Termination Solder Eyelet
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Silver
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Plating Gold
Contact Material Brass, Bronze, Copper
Supply Chain
Factory Lead Time 8 Weeks
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 34.11mm
