031-334
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC PLUG R/A 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $35.95
Unit Price: USD $35.948
≥1 USD $35.948
≥10 USD $31.47672
≥100 USD $30.116768
≥500 USD $29.145248
≥1000 USD $28.173816
≥3000 USD $26.61941
Inventory: 182
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass; Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Male
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Right Angle
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp or Solder

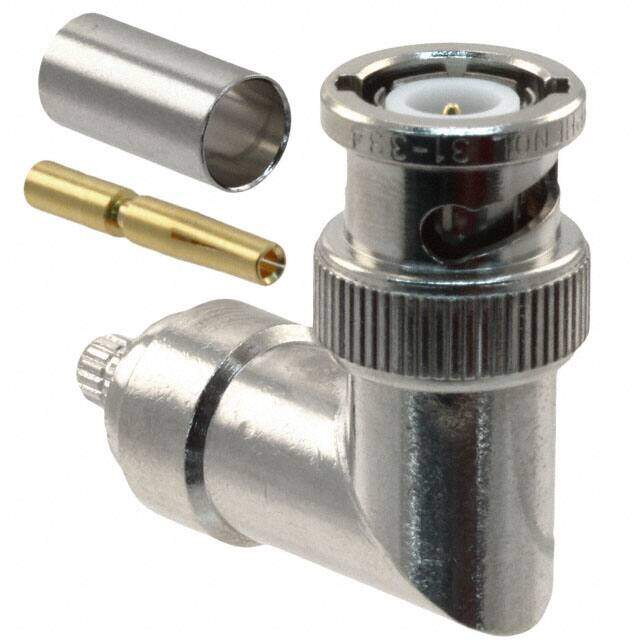

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-55, 142, 223, 400
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
Alternative Model
