000-36775
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

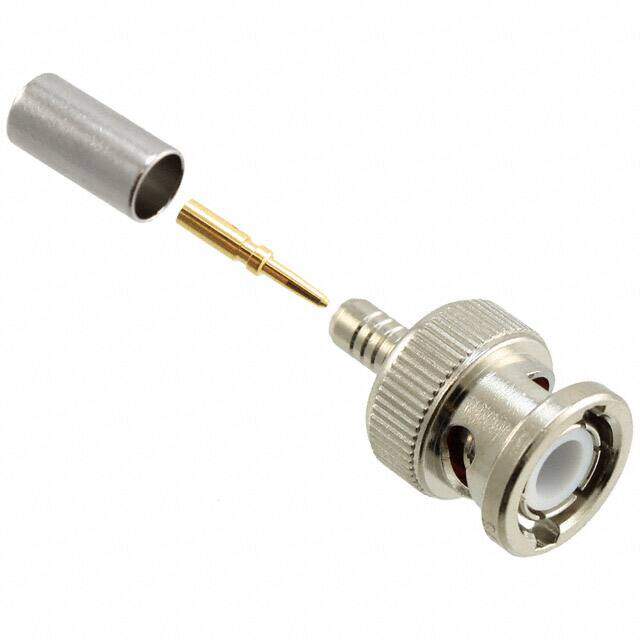

CONN BNC PLUG STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $9.76
Unit Price: USD $9.7592
≥1 USD $9.7592
≥10 USD $8.78592
≥100 USD $8.276224
≥500 USD $8.063968
≥1000 USD $7.851888
≥3000 USD $7.003005
Inventory: 142
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Shield Termination Crimp
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Body Finish Nickel
Insertion Loss 0.2dB
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp or Solder
Mating Cycles 500
Frequency (Max) 4GHz
Number of Ports 1
Connector Style BNC
Impedance 50Ohm
Housing Color Silver
Fastening Type Bayonet Lock
Voltage - Rated 500V
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2002
Packaging Bag
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 8 Weeks
