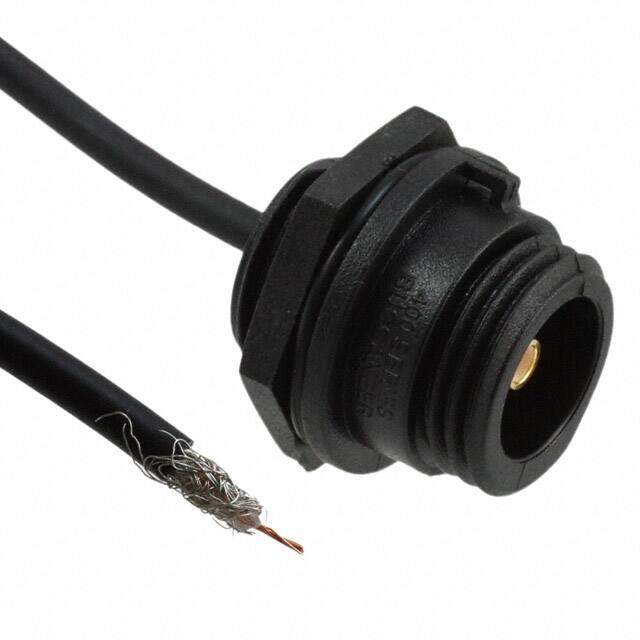

PX0414/1M00
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Cable Assemblies / Coaxial Cables (RF)
Description
CONN SMB JACK - RG-174 1M
PDF
/
Buying Options
Total Price: USD $41.01
Unit Price: USD $41.008
≥1 USD $41.008
≥10 USD $37.63056
≥100 USD $36.18296
≥500 USD $34.97692
≥1000 USD $33.04715
≥3000 USD $32.082292
Inventory: 129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Copper
Mount Panel
Package / Case SMB
Body Material Brass
Technical
Operating Temperature -20°C~80°C
Published 2005
Series Buccaneer?
Feature Shielded
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Crimp
ECCN Code EAR99
Connector Type Connector, Pin, SMB
Color Black
Gender Male to Cable
HTS Code 8536.69.40.10
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Straight
Style SMB to Cable
Frequency 4GHz
Mating Information MULTIPLE MATING PARTS AVAILABLE
Insulation Resistance 1GOhm
Cable Type RG-174
Coupling Type SNAP
Impedance 50Ohm
Wire/Cable Type Coaxial
Cable Length 1m
Body Plating Gold
1st Connector SMB Jack Male Pin
2nd Connector Cable (Round)
Connector Type A Male Pin, SMB
Connector Type B Cable
Dimensions
Length 39.4 1.0m 3.3'
Compliance
RoHS Status ROHS3 Compliant
