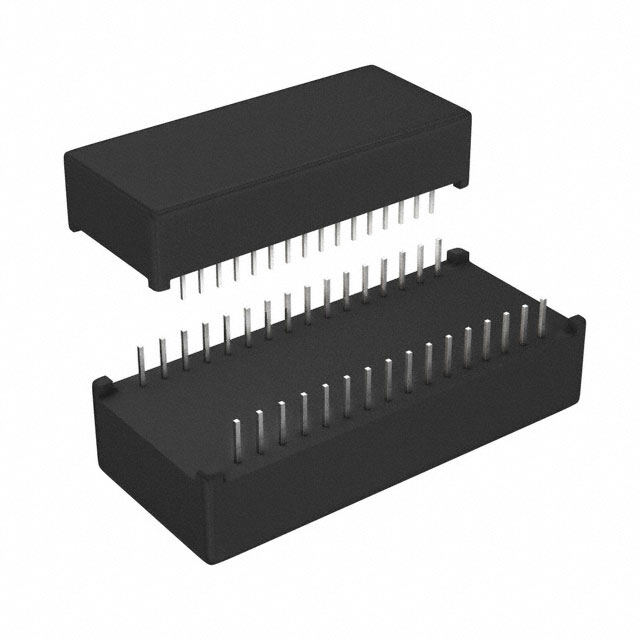

M48T129V-85PM1
RoHS
RoHS compliant
RoHS compliantPackage 32-DIP Module (0.600, 15.24mm)
Category Integrated Circuits (ICs) / Clock/Timing - Real Time Clocks
Description
32-DIP Module (0.600 15.24mm) M48T129 8542.39.00.01 Alarm Leap Year Watchdog Timer real time clock IC 3V~3.6V 3mA @ 3V~3.6V 42.8mm 85GHz
PDF
/
Buying Options
Total Price: USD $41.47
Unit Price: USD $41.47415
≥1 USD $41.47415
≥10 USD $34.02995
≥100 USD $32.9669
≥500 USD $31.90385
≥1000 USD $30.83985
Inventory: 1204
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 32-DIP Module (0.600, 15.24mm)
Number of Pins 32
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Series Timekeeper?
JESD-609 Code e3
Feature Alarm, Leap Year, Watchdog Timer
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 32
ECCN Code EAR99
Type Clock/Calendar
Terminal Finish MATTE TIN
HTS Code 8542.39.00.01
Subcategory Timer or RTC
Technology CMOS
Voltage - Supply 3V~3.6V
Terminal Position DUAL
Peak Reflow Temperature (Cel) 225
Supply Voltage 3.3V
Terminal Pitch 2.54mm
Frequency 85GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number M48T129
Pin Count 32
Qualification Status Not Qualified
Operating Supply Voltage 3.3V
Interface Parallel
Memory Size 976.6kB
Access Time 85 ns
Logic Function Clock
External Data Bus Width 8
RAM (words) 128000
Time Format HH:MM:SS (24 hr)
On Chip Data RAM Width 8
Date Format YY-MM-DD-dd
Current - Timekeeping (Max) 3mA @ 3V~3.6V
Time-Min SECONDS
Interrupt Capability Y
Volatile NO
Dimensions
Height Seated (Max) 9.52mm
Length 42.8mm
Width 15.24mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
