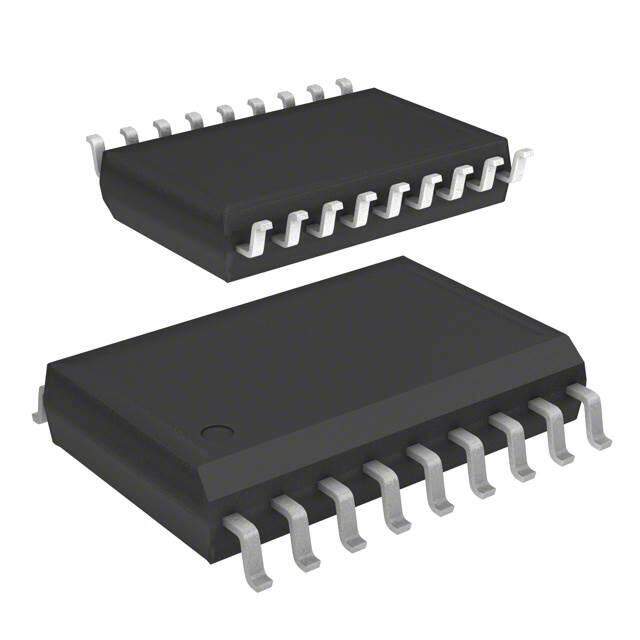

M41T83RMY6E
RoHS
RoHS compliant
RoHS compliantPackage 18-SOX, 18-SOIC with Crystal (7.5mm Width)
Category Integrated Circuits (ICs) / Clock/Timing - Real Time Clocks
Description
18-SOX 18-SOIC with Crystal (7.5mm Width) M41T83 8542.39.00.01 Alarm Leap Year Square Wave Output SRAM Watchdog Timer real time clock IC 2.7V~5.5V 10muA @ 5.5V 11.61mm 0.4MHz
PDF
/
Inventory: 4243
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 18-SOX, 18-SOIC with Crystal (7.5mm Width)
Number of Pins 18
Technical
Operating Temperature -40°C~85°C
Packaging Tube
JESD-609 Code e3
Feature Alarm, Leap Year, Square Wave Output, SRAM, Watchdog Timer
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 18
ECCN Code EAR99
Type Clock/Calendar
Terminal Finish Matte Tin (Sn) - annealed
HTS Code 8542.39.00.01
Subcategory Timers or RTCs
Technology CMOS
Voltage - Supply 2.7V~5.5V
Terminal Position DUAL
Peak Reflow Temperature (Cel) 240
Supply Voltage 3V
Terminal Pitch 1.27mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number M41T83
Pin Count 18
Qualification Status Not Qualified
Power Supplies 3/5V
Interface I2C, 2-Wire Serial
Memory Size 7B
Number of Bits 8
Clock Frequency 0.4MHz
Logic Function Clock
Number of Timers 1
Time Format HH:MM:SS:hh (24 hr)
Date Format YY-MM-DD-dd
Current - Timekeeping (Max) 10μA @ 5.5V
Time-Min 1/100SECOND
Interrupt Capability Y
Voltage - Supply, Battery 2V~5.5V
Volatile NO
Information Access Method I2C
Dimensions
Height 2.34mm
Length 11.61mm
Width 7.62mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
