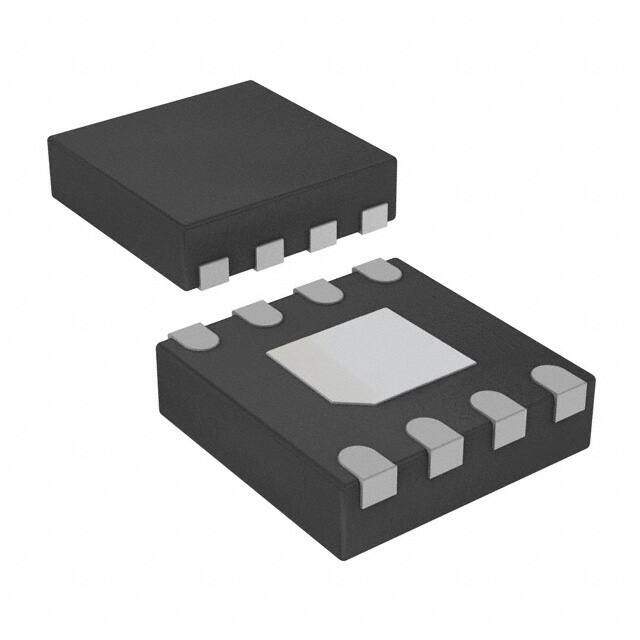

TS3002ITD822T
RoHS
/
Package 8-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / Clock/Timing - Programmable Timers and Oscillators
Description
Surface Mount 8-WFDFN Exposed Pad Obsolete NanoWatt Analog? programmable timer 2mm 5.2kHz~290kHz 1.951W -1mA
PDF
/
Buying Options
Total Price: USD $7.51
Unit Price: USD $7.51165
≥1 USD $7.51165
≥10 USD $6.16265
≥100 USD $5.97075
≥500 USD $5.7779
≥1000 USD $5.58505
Inventory: 3003
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 2mm
Length 2mm
Height 750μm
Technical
Low Level Output Current 1mA
High Level Output Current -1mA
Number of Timers/Counters 1
Current - Supply 3.6μA
Frequency Tolerance 2%
Nominal Supply Current 1μA
Operating Supply Current 3.6μA
Min Supply Voltage 900mV
Max Supply Voltage 1.8V
Number of Channels 1
Operating Supply Voltage 1V
Frequency 5.2kHz~290kHz
Voltage - Supply 0.9V~1.8V
Max Power Dissipation 1.951W
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Oscillator, Silicon
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series NanoWatt Analog?
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Supplier Device Package 8-TDFN (2x2)
Number of Pins 8
Package / Case 8-WFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
