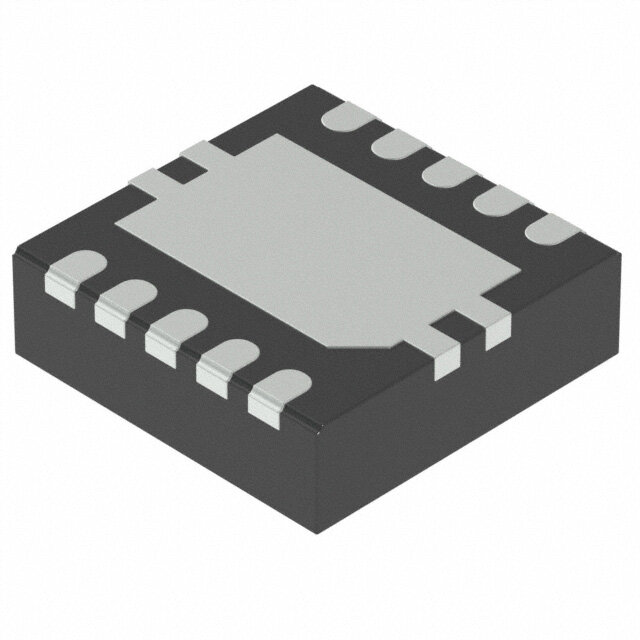

TPS3430WQDRCRQ1
RoHS
RoHS compliant
RoHS compliantPackage 10-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / Clock/Timing - Programmable Timers and Oscillators
Description
Surface Mount Wettable Flank 10-VFDFN Exposed Pad Active S-PDSO-N10 programmable timer 3mm 10muA 2 (1Year) 6.5V
PDF
/
Buying Options
Total Price: USD $2.08
Unit Price: USD $2.0768
≥1 USD $2.0768
≥10 USD $1.8656
≥100 USD $1.76
≥500 USD $1.499344
≥1000 USD $1.407859
≥3000 USD $1.231877
Inventory: 2190
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 1mm
Technical
Current - Supply 10μA
Adjustable Threshold NO
Number of Channels 1
Supply Voltage-Min (Vsup) 1.6V
Supply Voltage-Max (Vsup) 6.5V
JESD-30 Code S-PDSO-N10
Base Part Number TPS3430
Terminal Pitch 0.5mm
Supply Voltage 5V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position DUAL
Voltage - Supply 1.6V~6.5V
Terminal Finish Matte Tin (Sn)
Type Watchdog Circuit
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Surface Mount YES
Package / Case 10-VFDFN Exposed Pad
Mounting Type Surface Mount, Wettable Flank
Supply Chain
Factory Lead Time 6 Weeks
