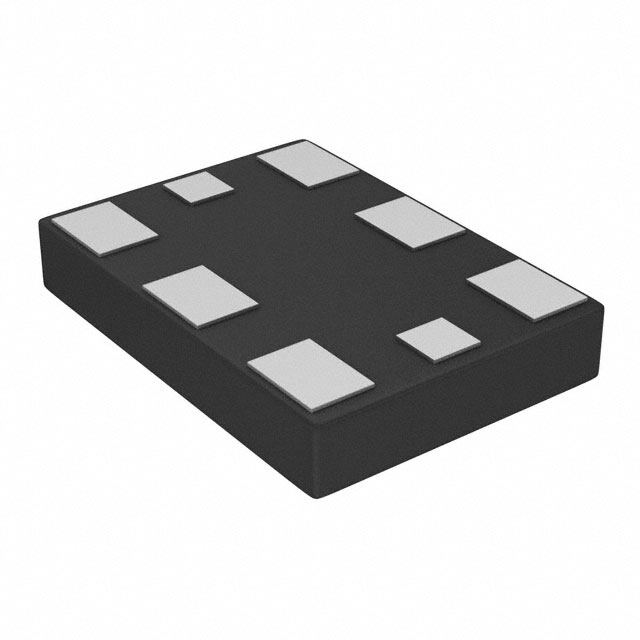

LMK61E2BAA-SIAR
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module
Category Integrated Circuits (ICs) / Clock/Timing - Programmable Timers and Oscillators
Description
Clock Oscillator Nickel/Gold (Ni/Au) LVDS ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; TR 13INCH programmable timer -40C~85C TA 0.25ns 3.3V 125OHM
PDF
/
Buying Options
Total Price: USD $21.87
Unit Price: USD $21.86939
≥1 USD $21.86939
≥100 USD $18.755258
≥250 USD $14.327233
≥1000 USD $12.635247
Inventory: 1438
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mounting Type Surface Mount
Package / Case 8-SMD Module
Surface Mount YES
Number of Pins 8
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Number of Terminations 8
Type Clock Oscillator
Terminal Finish Nickel/Gold (Ni/Au)
Additional Feature ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; TR, 13 INCH
Technology LVDS
Voltage - Supply 3.135V~3.465V
Supply Voltage 3.3V
Frequency 400MHz 900MHz 1GHz
Base Part Number LMK61E2
Physical Dimension 7.0mm x 5.0mm x 1.15mm
Operating Frequency 1000MHz
Rise Time-Max 0.25ns
Fall Time-Max 0.25ns
Symmetry-Max 55/45%
Current - Supply 162mA
Output Load 125 OHM
Dimensions
Height 1.15mm
Length 7mm
Width 5mm
Thickness 800μm
Compliance
RoHS Status ROHS3 Compliant
