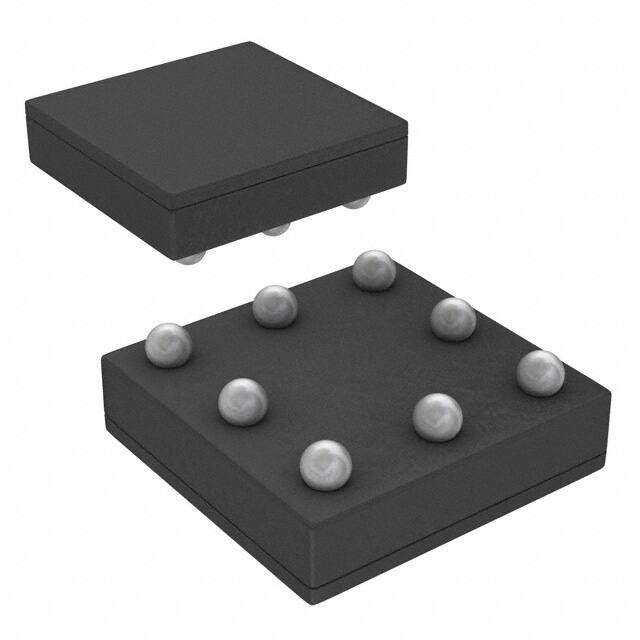

LMC555CTPX/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 8-UFBGA
Category Integrated Circuits (ICs) / Clock/Timing - Programmable Timers and Oscillators
Description
Surface Mount 8-UFBGA Active EAR99 programmable oscillator 0m 3MHz 568mW -10mA
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.188
≥1 USD $1.188
≥10 USD $1.05952
≥100 USD $1.005312
≥500 USD $0.82588
≥1000 USD $0.772006
≥3000 USD $0.682246
Inventory: 14857
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-UFBGA
Number of Pins 8
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type 555 Type, Timer/Oscillator (Single)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Analog Waveform Generation Functions
Max Power Dissipation 568mW
Technology CMOS
Voltage - Supply 1.5V~15V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Frequency 3MHz
Base Part Number LMC555
Pin Count 8
Operating Supply Current 150μA
Nominal Supply Current 50μA
Power Dissipation 568mW
Output Current 100mA
Propagation Delay 100 ns
Quiescent Current 50μA
Turn On Delay Time 100 ns
Number of Timers/Counters 1
Supply Current-Max (Isup) 0.4mA
High Level Output Current -10mA
Low Level Output Current 50mA
Dimensions
Height 575μm
Length 0m
Width 0m
Thickness 370μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
