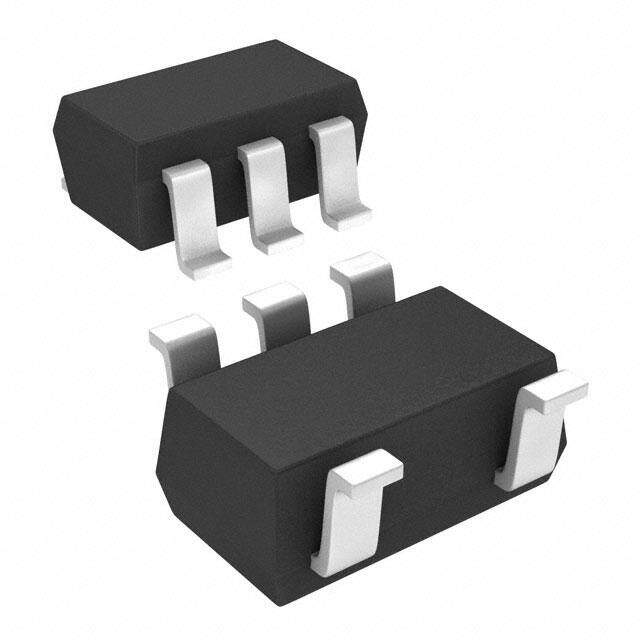

STCL1120YBFCWY5
RoHS
RoHS compliant
RoHS compliantPackage SC-74A, SOT-753
Category Integrated Circuits (ICs) / Clock/Timing - Programmable Timers and Oscillators
Description
SMD/SMT Surface Mount SC-74A SOT-753 Obsolete programmable timer 3mm 12MHz 590muA 12pF
PDF
/
Buying Options
Total Price: USD $0.59
Unit Price: USD $0.588562
≥1 USD $0.588562
≥10 USD $0.559134
≥100 USD $0.538111
Inventory: 86
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Number of Pins 5
Technical
Operating Temperature -20°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Termination SMD/SMT
ECCN Code EAR99
Type Oscillator, Silicon
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Technology CMOS
Voltage - Supply 4.5V~5.5V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Depth 1.75mm
Frequency 12MHz
Base Part Number STCL1120
Pin Count 5
Operating Supply Voltage 5.5V
Operating Supply Current 590μA
Load Capacitance 12pF
Dimensions
Length 3mm
Width 1.6mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
