LMK04616ZCRR
RoHS
RoHS compliant

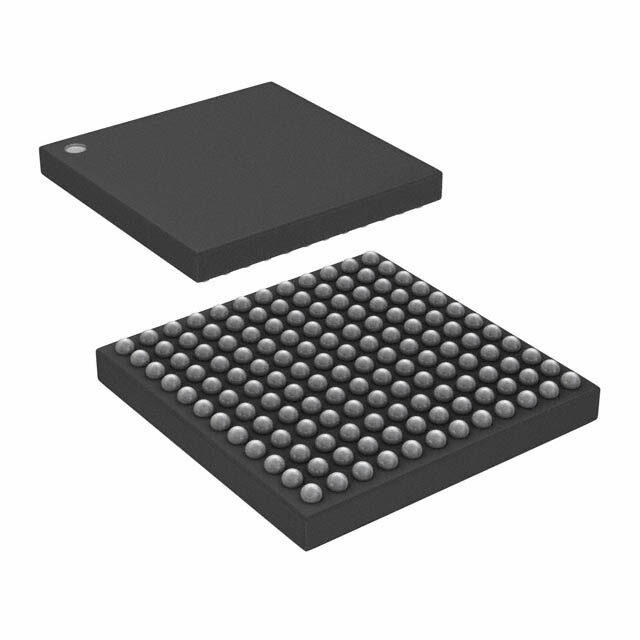

RoHS compliantPackage 144-LFBGA
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
HCSL HSDS LCPECL LVCMOS LVDS LVPECL Jitter Cleaner 144-LFBGA LMK04616 clock generator circuit 3.3V 2GHz 28.6mA 10mm
PDF
/
Buying Options
Total Price: USD $33.18
Unit Price: USD $33.1797
≥1 USD $33.1797
≥10 USD $27.22415
≥100 USD $26.3739
≥500 USD $25.5227
≥1000 USD $24.67245
Inventory: 1164
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mounting Type Surface Mount
Package / Case 144-LFBGA
Surface Mount YES
Number of Pins 144
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 144
ECCN Code EAR99
Type Jitter Cleaner
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Voltage - Supply 1.7V~3.465V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 3.3V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LMK04616
Output HCSL, HSDS, LVDS, LVPECL
Number of Outputs 16
Number of Circuits 1
Supply Current-Max 28.6mA
Frequency (Max) 2GHz
Number of Inputs 4
Input HCSL, HSDS, LCPECL, LVCMOS, LVDS, LVPECL
Ratio - Input:Output 4:16
Primary Clock/Crystal Frequency-Nom 600MHz
PLL Yes
Differential - Input:Output Yes/Yes
Divider/Multiplier Yes/No
Dimensions
Height 1.5mm
Length 10mm
Width 10mm
Thickness 950μm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
