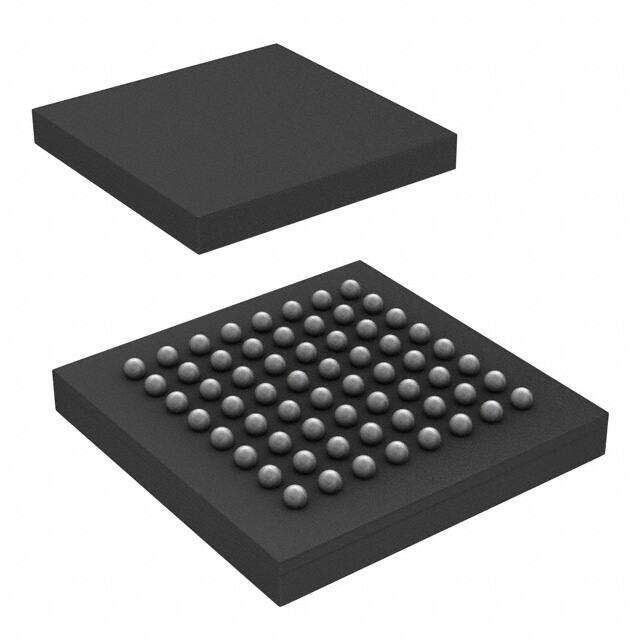

CDC7005GVAT
RoHS
RoHS compliant
RoHS compliantPackage 64-BGA
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
Lead Tin BOTTOM Obsolete BALL Clock Synchronizer and Jitter Cleaner IC -40C~85C 0.06ns 8mm 800MHz
PDF
/
Buying Options
Total Price: USD $15.21
Unit Price: USD $15.2076
≥1 USD $15.2076
≥10 USD $12.47825
≥100 USD $12.0878
≥500 USD $11.6983
≥1000 USD $11.30785
Inventory: 1150
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Width 8mm
Length 8mm
Technical
Same Edge Skew-Max (tskwd) 0.06 ns
fmax-Min 800 MHz
Differential - Input:Output Yes/Yes
PLL No
Ratio - Input:Output 2:5
Input LVCMOS, LVPECL
Frequency (Max) 800MHz
Number of Circuits 1
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Number of Outputs 5
Pin Count 64
Output LVPECL
Base Part Number CDC7005
Terminal Pitch 0.8mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 235
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 3V~3.6V
Subcategory Clock Driver
Terminal Finish Tin/Lead (Sn/Pb)
Type Clock Synchronizer and Jitter Cleaner
ECCN Code EAR99
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Weight 170.210537mg
Number of Pins 64
Package / Case 64-BGA
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Lead, Tin
