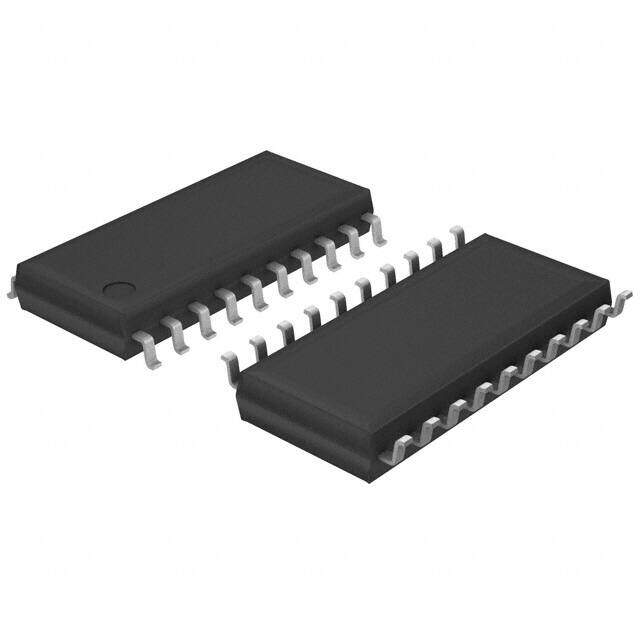

BU2624AF-E2
RoHS
RoHS compliant
RoHS compliantPackage 20-SOIC (0.213, 5.40mm Width)
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
Clock Crystal PLL Frequency Synthesizer 20-SOIC (0.213 5.40mm Width) BU2624A clock generator circuit 6V 180MHz 5.4mm -40C~85C
PDF
/
Buying Options
Total Price: USD $10.51
Unit Price: USD $10.5108
≥1 USD $10.5108
≥10 USD $8.6241
≥100 USD $8.35525
≥500 USD $8.08545
≥1000 USD $7.81565
Inventory: 1126
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 20-SOIC (0.213, 5.40mm Width)
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 1999
JESD-609 Code e3/e2
Pbfree Code yes
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
Type PLL Frequency Synthesizer
Terminal Finish TIN/TIN COPPER
Subcategory PLL or Frequency Synthesis Circuits
Voltage - Supply 4V~6V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Time@Peak Reflow Temperature-Max (s) 10
Base Part Number BU2624A
Output Clock
Pin Count 20
JESD-30 Code R-PDSO-G20
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 6V
Power Supplies 5V
Supply Voltage-Min (Vsup) 4V
Number of Circuits 1
Frequency (Max) 180MHz
Input Clock, Crystal
Ratio - Input:Output 5:6
PLL Yes
Differential - Input:Output No/No
Divider/Multiplier Yes/No
Dimensions
Width 5.4mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
