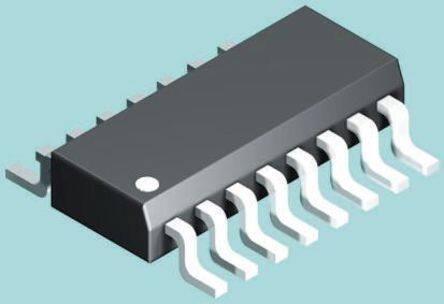

ICS673M-01ILF
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
DUAL GULL WING INDUSTRIAL CMOS clock generator circuit 1999 0C 10mm 15mA
PDF
/
Inventory: 3306
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 10mm
Height 1.5mm
Technical
Input Conditioning STANDARD
Number of True Outputs 2
fmax-Min 120 MHz
Logic IC Type PLL BASED CLOCK DRIVER
Output Characteristics 3-STATE
Family 673
Max Supply Current 15mA
Min Supply Voltage 3.13V
Max Supply Voltage 5.25V
Temperature Grade INDUSTRIAL
Qualification Status Not Qualified
Pin Count 16
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1.27mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
HTS Code 8542.39.00.01
Additional Feature ALSO OPERATES WITH 5V SUPPLY
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e3
Published 1999
Physical
Number of Pins 16
Package / Case SOIC
Mount Surface Mount
