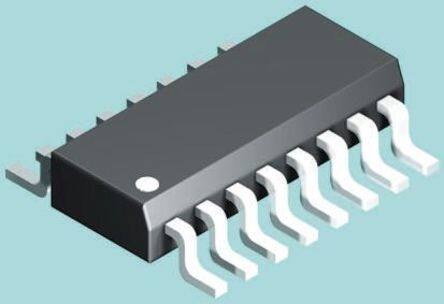

ICS670M-03ILF
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
STANDARD SOIC PLL BASED CLOCK DRIVER e3 clock generator ic 5.5V 210MHz 0.012A 35mA
PDF
/
Buying Options
Total Price: USD $3.73
Unit Price: USD $3.7335
≥1 USD $3.7335
≥10 USD $3.0628
≥100 USD $2.9678
≥500 USD $2.87185
≥1000 USD $2.7759
Inventory: 1089
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 10mm
Height 1.5mm
Technical
Input Conditioning STANDARD
Number of True Outputs 1
fmax-Min 210 MHz
Max I(ol) 0.012 A
Logic IC Type PLL BASED CLOCK DRIVER
Output Characteristics 3-STATE
Family 670
Max Supply Current 35mA
Min Supply Voltage 3V
Max Supply Voltage 5.5V
Temperature Grade INDUSTRIAL
Power Supplies 3.3/5V
Qualification Status Not Qualified
Pin Count 16
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1.27mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Clock Drivers
HTS Code 8542.39.00.01
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e3
Published 1999
Physical
Number of Pins 16
Package / Case SOIC
Mount Surface Mount
