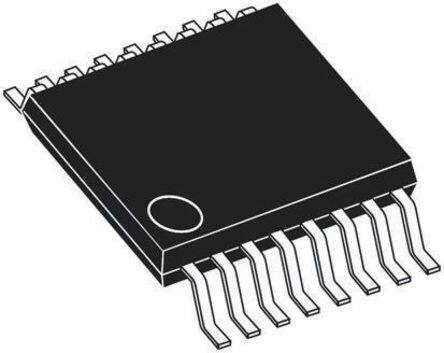

ICS661GILF
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
TSSOP CLOCK GENERATOR VIDEO e3 Matte Tin (Sn) - annealed clock generator circuit 3.6V 49.152MHz 25mA 5.1mm
PDF
/
Buying Options
Total Price: USD $53.7
Unit Price: USD $53.69685
≥1 USD $53.69685
≥10 USD $44.0591
≥100 USD $42.6816
≥500 USD $41.30505
≥1000 USD $39.9285
Inventory: 23
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TSSOP
Number of Pins 16
Technical
Published 1999
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 16
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Clock Generators
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.3V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 16
Qualification Status Not Qualified
Temperature Grade INDUSTRIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Max Supply Current 25mA
uPs/uCs/Peripheral ICs Type CLOCK GENERATOR, VIDEO
Primary Clock/Crystal Frequency-Nom 28MHz
Output Clock Frequency-Max 49.152MHz
Dimensions
Height 1.05mm
Length 5.1mm
Width 4.5mm
Compliance
RoHS Status RoHS Compliant
