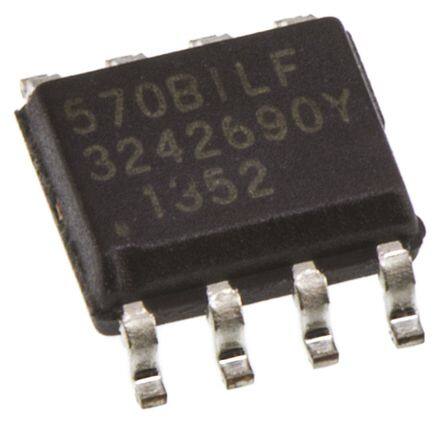

ICS570BILF
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
DUAL GULL WING INDUSTRIAL CMOS clock generator ic 1999 -40C 5mm 25mA
PDF
/
Buying Options
Total Price: USD $3.22
Unit Price: USD $3.2224
≥1 USD $3.2224
≥10 USD $2.64385
≥100 USD $2.5612
≥500 USD $2.47855
≥1000 USD $2.3959
Inventory: 119
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 8
Technical
Published 1999
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 8
Operating Supply Voltage 3.3V
Temperature Grade INDUSTRIAL
Number of Circuits 1
Max Supply Voltage 5.25V
Min Supply Voltage 3.15V
Max Supply Current 25mA
Frequency (Max) 170MHz
Family 570
Input Clock
PLL Yes
Number of True Outputs 2
Dimensions
Height 1.5mm
Length 5mm
Width 4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
