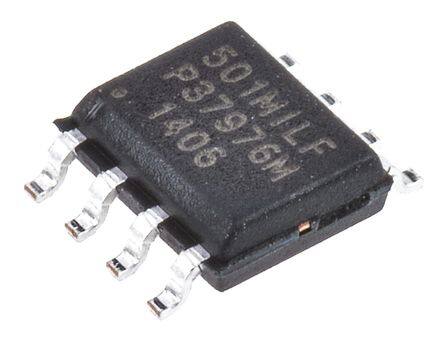

ICS501MILF
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
SOIC CLOCK GENERATOR OTHER ALSO OPERATES AT 5V SUPPLY e3 clock generator ic 5.25V 140MHz 20mA 5mm
PDF
/
Buying Options
Total Price: USD $1.33
Unit Price: USD $1.3256
≥1 USD $1.3256
≥10 USD $1.25057
≥100 USD $1.17978
≥500 USD $1.113
≥1000 USD $1.05
≥3000 USD $0.99057
Inventory: 9717
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 5mm
Height 1.5mm
Technical
Output Clock Frequency-Max 140MHz
Primary Clock/Crystal Frequency-Nom 50MHz
uPs/uCs/Peripheral ICs Type CLOCK GENERATOR, OTHER
Max Supply Current 20mA
Min Supply Voltage 3V
Max Supply Voltage 5.25V
Temperature Grade INDUSTRIAL
Power Supplies 3.3/5V
Qualification Status Not Qualified
Pin Count 8
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1.27mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Clock Generators
Additional Feature ALSO OPERATES AT 5V SUPPLY
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 1999
Physical
Number of Pins 8
Package / Case SOIC
Mount Surface Mount
