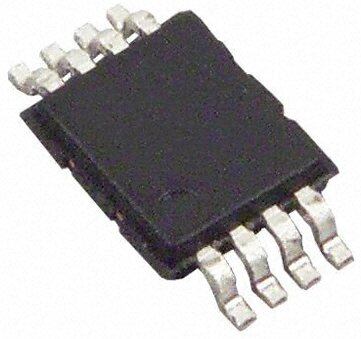

ICS501GILF image
Favorite
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description Clock TSSOP ALSO OPERATES AT 5V SUPPLY e3 clock generator circuit 5.25V 140MHz 20mA 5mm
PDF
/
Inventory: 4644
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case TSSOP
Number of Pins 8

Technical

Published 1999
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 3
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Additional Feature ALSO OPERATES AT 5V SUPPLY
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.3V
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 8
Qualification Status Not Qualified
Power Supplies 3.3/5V
Temperature Grade INDUSTRIAL
Number of Circuits 1
Max Supply Voltage 5.25V
Min Supply Voltage 3V
Max Supply Current 20mA
Frequency (Max) 140MHz
Input Clock
Primary Clock/Crystal Frequency-Nom 50MHz
PLL Yes

Dimensions

Height 1.5mm
Length 5mm
Width 4mm

Compliance

RoHS Status RoHS Compliant
