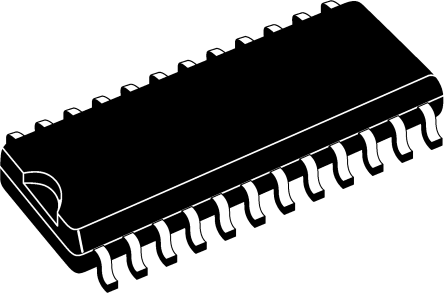

ICS1523MLF
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
SOIC CLOCK GENERATOR VIDEO e3 Matte Tin (Sn) - annealed clock generator ic 3.6V 250MHz 25mA 92mum
PDF
/
Inventory: 9287
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 24
Technical
Published 2003
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 24
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 24
Qualification Status Not Qualified
Temperature Grade COMMERCIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Max Supply Current 25mA
uPs/uCs/Peripheral ICs Type CLOCK GENERATOR, VIDEO
Primary Clock/Crystal Frequency-Nom 100MHz
Output Clock Frequency-Max 250MHz
Dimensions
Height 92μm
Width 296μm
Compliance
RoHS Status RoHS Compliant
