STCD1020RDG6F
RoHS
RoHS compliant

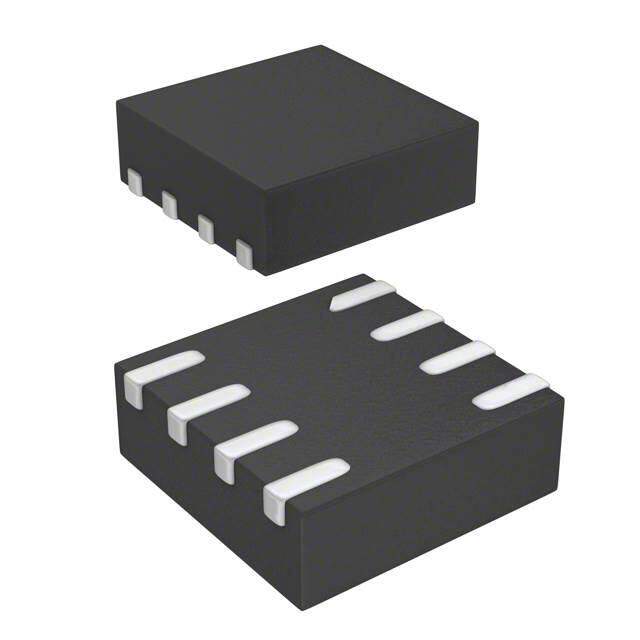

RoHS compliantPackage 8-TDFN
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
Clock STCD10 8-TDFN Obsolete clock driver 0.5mm 2.8V 52MHz -40C~85C
PDF
/
Buying Options
Total Price: USD $1.9
Unit Price: USD $1.89905
≥1 USD $1.89905
≥10 USD $1.558
≥100 USD $1.50955
≥500 USD $1.4611
≥1000 USD $1.41265
Inventory: 1180
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-TDFN
Number of Pins 8
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Type Fanout Buffer (Distribution)
Terminal Finish Matte Tin (Sn) - annealed
Voltage - Supply 2.5V~3.6V
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Supply Voltage 2.8V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number STCD10
Number of Outputs 2
Operating Supply Voltage 2.8V
Number of Circuits 1
Quiescent Current 2.6mA
Frequency (Max) 52MHz
Input Clock
Ratio - Input:Output 1:2
Differential - Input:Output No/No
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
