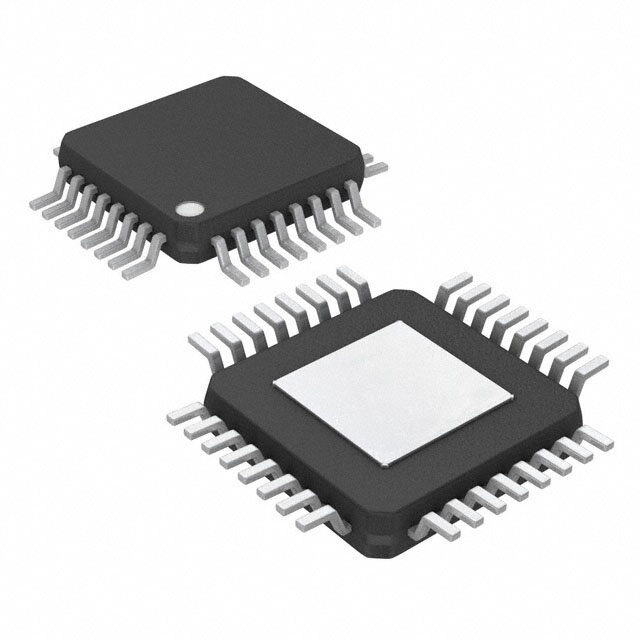

PL138-18FI
RoHS
RoHS compliant
RoHS compliantPackage 32-LQFP Exposed Pad
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
ALSO OPERATES AT -2.375TO -3.8V SUPPLY CML HCSL LVCMOS LVDS LVHSTL LVPECL SSTL PL138 32-LQFP Exposed Pad clock buffer 7mm 2.5V 0.037ns 700MHz
PDF
/
Inventory: 9976
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Technical
Same Edge Skew-Max (tskwd) 0.037 ns
fmax-Min 700 MHz
Propagation Delay (tpd) 0.79 ns
Differential - Input:Output Yes/Yes
Ratio - Input:Output 2:10
Input CML, HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, SSTL
Frequency (Max) 700MHz
Number of Circuits 1
Supply Voltage-Min (Vsup) 2.375V
Supply Voltage-Max (Vsup) 2.625V
JESD-30 Code S-PQFP-G32
Output LVPECL
Base Part Number PL138
Terminal Pitch 0.8mm
Supply Voltage 2.5V
Number of Functions 1
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 2.375V~3.63V
Packing Method TRAY
Additional Feature ALSO OPERATES AT -2.375 TO -3.8 V SUPPLY
Type Fanout Buffer (Distribution), Multiplexer
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 32-LQFP Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
