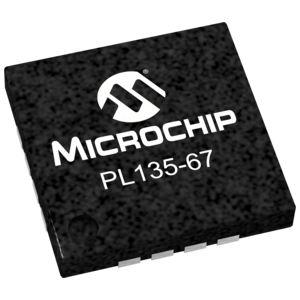

PL135-67QC-R image
Favorite
PL135-67QC-R image
Favorite

PL135-67QC-R

Microchip Technology
RoHS
RoHS RoHS compliant
Package 16-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description Crystal PL135 16-WFQFN Exposed Pad Active clock buffer 3mm 1.8V 40MHz 0C~70C
PDF
/
Buying Options
Total Price: USD $3.98
Unit Price: USD $3.9776
≥1 USD $3.9776
≥10 USD $3.3088
≥100 USD $3.212
Inventory: 1247
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-WFQFN Exposed Pad

Technical

Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Type Fanout Buffer (Distribution)
Voltage - Supply 1.62V~3.63V
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Base Part Number PL135
Output LVCMOS
Number of Circuits 1
Frequency (Max) 40MHz
Input Crystal
Ratio - Input:Output 1:6
Primary Clock/Crystal Frequency-Nom 40MHz
Differential - Input:Output No/No

Dimensions

Height Seated (Max) 0.8mm
Length 3mm
Width 3mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
