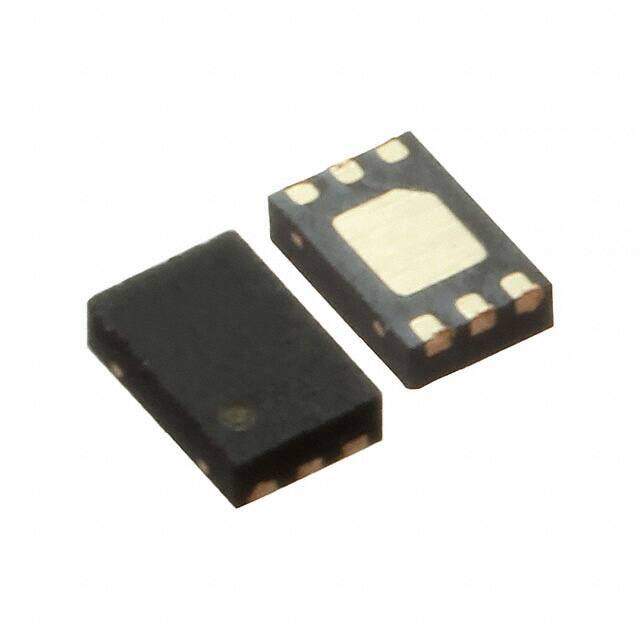

PL133-27GI-R
RoHS
RoHS compliant
RoHS compliantPackage 6-UFDFN Exposed Pad
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
LVCMOS Sine Wave PL133 6-UFDFN Exposed Pad R-PDSO-N6 clock driver 2mm 1.8V 0.5ns 150MHz
PDF
/
Buying Options
Total Price: USD $1.74
Unit Price: USD $1.7424
≥1 USD $1.7424
≥10 USD $1.452
≥100 USD $1.32
Inventory: 1233
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-UFDFN Exposed Pad
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2016
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type Fanout Buffer (Distribution)
Terminal Finish NICKEL PALLADIUM GOLD
Voltage - Supply 1.62V~3.63V
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 1.8V
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PL133
Output LVCMOS
JESD-30 Code R-PDSO-N6
Supply Voltage-Max (Vsup) 3.63V
Number of Circuits 1
Frequency (Max) 150MHz
Input LVCMOS, Sine Wave
Ratio - Input:Output 1:2
Differential - Input:Output No/No
Same Edge Skew-Max (tskwd) 0.5 ns
Dimensions
Height Seated (Max) 0.6mm
Length 2mm
Compliance
RoHS Status ROHS3 Compliant
